What is Rotational Molding? An In-Depth Guide to Understanding and Leveraging This Manufacturing Process

Rotational molding, commonly known as rotomolding, is a versatile and efficient manufacturing process used to create hollow plastic products. This technique has revolutionized the way products are designed and produced, offering numerous advantages over traditional methods. In this article, we will explore the intricacies of rotational molding, including its history, benefits, applications, and step-by-step process. By the end, you'll have a comprehensive understanding of what rotational molding is and why it's a preferred choice in various industries.

The History of Rotational Molding

Origins and Evolution

Rotational molding has a rich history dating back to the early 20th century. The process was first introduced in the 1940s, primarily for producing toys and other small plastic items. Over the decades, advancements in materials, machinery, and techniques have expanded its applications across various industries, making it a pivotal method in modern manufacturing.

Key Milestones in Rotational Molding Development

• 1. Introduction of Polyethylene: In the 1950s, the development of polyethylene revolutionized rotational molding, providing a durable and versatile material for production.
• 2. Technological Advancements: The 1970s and 1980s saw significant improvements in machinery and mold design, enhancing the efficiency and precision of the process.
• 3. Modern Innovations: Today, rotational molding benefits from advanced computer-controlled systems, allowing for greater customization and consistency in product manufacturing.

The Rotational Molding Process

Step-by-Step Guide to Rotomolding

Rotational molding involves a multi-step process that transforms raw plastic materials into finished products. Here’s a detailed look at each stage:

Mold Preparation

The process begins with the preparation of the mold, which is typically made from aluminum or steel. The mold is designed to the specifications of the desired product.

Material Loading

A predetermined amount of plastic resin, usually in powder form, is loaded into the mold. Common materials include polyethylene, PVC, and polypropylene.

Heating and Rotation

The mold is placed in an oven and rotated biaxially (around two axes). As the mold heats up, the plastic powder melts and coats the interior surfaces of the mold evenly.

Cooling

After the heating cycle, the mold is gradually cooled, allowing the plastic to solidify. The controlled cooling process ensures uniform thickness and strength in the final product.

Demolding

Once cooled, the mold is opened, and the finished product is removed. The product typically requires minimal finishing, such as trimming or polishing.

Equipment and Tools Used in Rotational Molding

• 1. Molds: Made from aluminum or steel, designed to specific product dimensions.

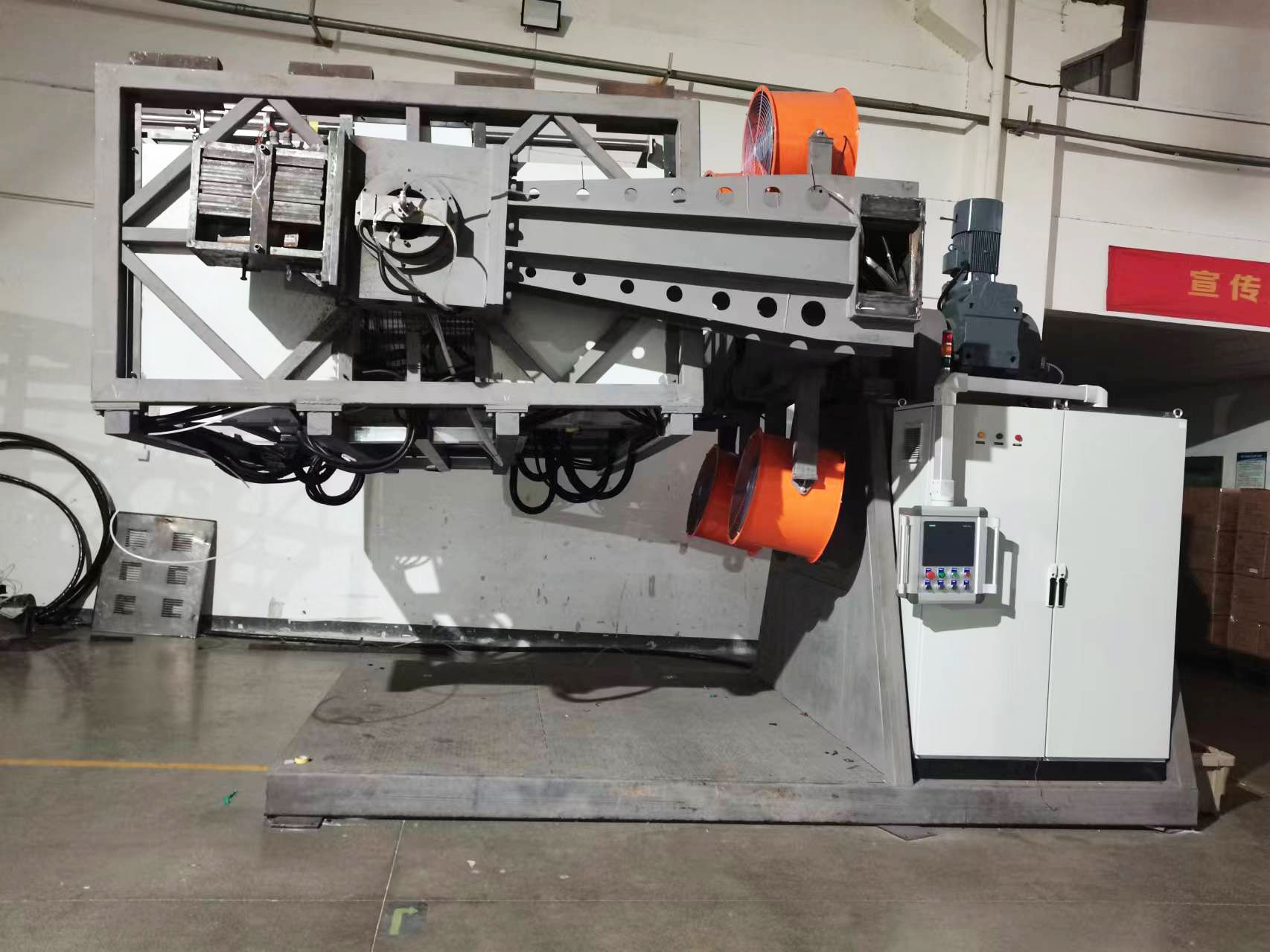

• 2. Rotational Machines: Include clamshell, swing arm, and carousel machines, each suited for different production needs.
• 3. Heating Ovens: Ensure uniform heat distribution for even melting of plastic materials.

Advantages of Rotational Molding

Versatility in Design

One of the most significant advantages of rotational molding is its ability to produce complex shapes and designs with uniform wall thickness. This versatility allows for the creation of a wide range of products, from large tanks to intricate toys.

Cost-Effectiveness

Rotomolding is a cost-effective manufacturing process, particularly for low to medium-volume production runs. The relatively low cost of molds and the minimal need for secondary processes contribute to overall savings.

Durability and Strength

Products made through rotational molding are known for their durability and strength. The process creates seamless, stress-free parts with consistent wall thickness, resulting in robust and long-lasting products.

Material Efficiency

Rotational molding uses plastic materials efficiently, with minimal waste. The process allows for the recycling of excess material, making it an environmentally friendly manufacturing method.

Applications of Rotational Molding

Industrial Applications

• l Storage Tanks: Rotomolding is widely used to produce large storage tanks for chemicals, water, and other liquids.
• l Automotive Parts: Components such as fuel tanks, air ducts, and fenders are often made using rotational molding.

Consumer Goods

• l Toys: The process is ideal for creating durable and detailed plastic toys.
• l Outdoor Equipment: Items like kayaks, playground equipment, and garden furniture benefit from the durability and weather resistance of rotomolded products.

Medical and Healthcare

• l Medical Equipment: Rotomolding is used to manufacture various medical devices and equipment, including beds and mobility aids.
• l Healthcare Products: Items such as hospital carts and containers are also produced using this method.

Agricultural Products

• l Livestock Feeders: Durable and easy-to-clean feeders for livestock.
• l Water Tanks: Efficient storage solutions for water in agricultural settings.

Custom and Specialized Products

• l Custom Molding: Rotational molding allows for the creation of bespoke products tailored to specific requirements.
• l Prototypes and Small Batches: The process is ideal for producing prototypes and small batch products with minimal setup costs.

Materials Used in Rotational Molding

Commonly Used Resins

• l Polyethylene (PE): The most widely used material in rotomolding, known for its durability and flexibility.
• l Polypropylene (PP): Offers excellent chemical resistance and is used in applications requiring higher temperature stability.
• l Polyvinyl Chloride (PVC): Known for its strength and rigidity, used in various industrial applications.

Specialty Materials

• l Nylon: Used for products requiring high impact and abrasion resistance.
• l Polycarbonate: Offers transparency and high impact strength, used in specialized applications.

Material Selection Criteria

• l Durability: Choosing materials that provide the necessary strength and longevity for the intended application.
• l Chemical Resistance: Ensuring the material can withstand exposure to chemicals or harsh environments.
• l Cost-Effectiveness: Balancing material costs with the desired properties and performance.

Challenges and Solutions in Rotational Molding

Common Challenges

• 1. Cycle Time: Rotational molding can have longer cycle times compared to other processes, impacting production speed.
• 2. Material Flow: Ensuring even material distribution can be challenging, especially for complex shapes.
• 3. Temperature Control: Maintaining precise temperature control is crucial for consistent product quality.

Innovative Solutions

• 1. Advanced Machinery: Modern rotational molding machines offer better control and efficiency, reducing cycle times and improving material flow.
• 2. Enhanced Materials: Developing new materials with improved flow characteristics and faster cooling times.
• 3. Automation and Monitoring: Utilizing automated systems for precise temperature control and real-time monitoring of the molding process.

Conclusion

Rotational molding is a transformative manufacturing process that offers unparalleled versatility and efficiency. From its historical origins to its modern-day applications, rotomolding continues to evolve, driven by technological advancements and sustainable practices. Whether you're looking to produce durable storage tanks, intricate toys, or specialized medical equipment, rotational molding provides a reliable and cost-effective solution. Embracing this innovative technique can lead to significant benefits in product design, production efficiency, and overall quality.
