Shuttle Rotomolding Machine

All Products

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 Advantages of Rotational carrousel machine: 1. Heating, cooling, disassembling mold, three stations to achieve assembly line operation, high output. 2. Suitable for products with close production time (heating + disassembly mold), or mass production of the same product. 3. With independent cooling station (can choose to install cooling chamber or no cooling chamber).
 Features: The rotational carrousel machine: is recognized by customers for its continuous production and high stability.
The three-arm rotational carrousel machine is equipped with a central turret, with 3 moving trolleys, according to different product needs, you can choose 4 stations (heating, cooling, disassembling mold, preparation), 5 stations (heating, pre-cooling, cooling, disassembling mold, preparation).
The four-arm rotational carrousel machine is equipped with a central turret, with 4 moving trolleys, according to different product needs, you can choose 5 stations (heating, cooling, disassembling mold, loading mold, preparation), 5 stations (heating, pre-cooling, cooling, disassembling mold, loading mold, preparation).
</div>

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 There are four types of robotic arms to choose from
&nbsp;
<table style="border-collapse: collapse; width: 100.071%; height: 446.226px; border: 1px solid rgb(0, 0, 0);" border="1"><colgroup><col style="width: 25%;"><col style="width: 25%;"><col style="width: 25%;"><col style="width: 25%;"></colgroup>
<tbody>
<tr style="height: 42.062px; background-color: rgb(236, 240, 241);">
<td style="border-style: solid; height: 42.062px;">
Linear Robotic Arms
</td>
<td style="border-style: solid; height: 42.062px;">
L-shaped Robotic Arms
</td>
<td style="border-style: solid; height: 42.062px;">
U-shaped Robotic Arms
</td>
<td style="border-style: solid; height: 42.062px;">
Frame Shaped Robotic Arms
</td>
</tr>
<tr style="height: 218.664px;">
<td style="border-style: solid; height: 218.664px;">
<img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjgzMjUwMTI4NzkyMzAzOC9zdGF0aWMtcmVzLzRlZmU0NWZlODYwNTE0MDEyOTYwMTM1LmpwZyIsImVkaXRzIjp7InJlc2l6ZSI6eyJ3aWR0aCI6NjAwLCJmaXQiOiJjb3ZlciJ9LCJyb3RhdGUiOm51bGx9fQ==" alt="">
</td>
<td style="border-style: solid; height: 218.664px;">
<img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjgzMjUwMTI4NzkyMzAzOC9zdGF0aWMtcmVzLzg3NWM1NjE1ODU1MzYwMzU0MTkxNTg3LmpwZyIsImVkaXRzIjp7InJlc2l6ZSI6eyJ3aWR0aCI6MTUwMCwiZml0IjoiY292ZXIifSwicm90YXRlIjpudWxsfX0=">
</td>
<td style="border-style: solid; height: 218.664px;">
<img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjgzMjUwMTI4NzkyMzAzOC9zdGF0aWMtcmVzLzc5ODc5YmU5ODU2MDcxOTg0OTc0MzIzLmpwZyIsImVkaXRzIjp7InJlc2l6ZSI6eyJ3aWR0aCI6MTUwMCwiZml0IjoiY292ZXIifSwicm90YXRlIjpudWxsfX0=">
</td>
<td style="border-style: solid; height: 218.664px;">
<img style="display: block; margin-left: auto; margin-right: auto;" src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjgzMjUwMTI4NzkyMzAzOC9zdGF0aWMtcmVzL2I5ZTFhZmJkODU2MDcxOTg0OTc0MzIyLmpwZyIsImVkaXRzIjp7InJlc2l6ZSI6eyJ3aWR0aCI6MTUwMCwiZml0IjoiY292ZXIifSwicm90YXRlIjpudWxsfX0=">
</td>
</tr>
<tr style="height: 185.5px;">
<td style="border-style: solid; height: 185.5px;">
The straight arm is suitable for products with large output, long mold size and low product height. Such as: pickleball, dashboard, car door inner shell cover, small fuel tank and so on. The load bearing capacity of 3 meters straight arm is 1.8 tons. The larger the size, the stronger the load bearing capacity.
</td>
<td style="border-style: solid; height: 185.5px;">
L-shaped arm is suitable for products with relatively high mold height, such as: incubator, dry refrigerator, military box, small bucket, and floor washer shell cover and so on. The load bearing capacity of 3 meters L-shaped arm is 2 tons. The larger the size, the stronger the load bearing capacity.
</td>
<td style="border-style: solid; height: 185.5px;">
U-shaped arm is suitable for large products, such as: rides, S-shaped slides, large buckets and so on. The load bearing capacity of 3 meters U-shaped arm is 3 tons. The larger the size, the stronger the load bearing capacity.
</td>
<td style="border-style: solid; height: 185.5px;">
The frame arm is suitable for making super large products, such as: super large water tank, military drone box, sea buoy and so on. The load bearing capacity of 3 meters frame arm is 5 tons. The larger the size, the stronger the load bearing capacity.
</td>
</tr>
</tbody>
</table>
Robotic Arm
Straight arm with a capacity of 1.8 tons for over 3 meters, L-shaped arm with a capacity of 2 tons, U-shaped arm with a capacity of 3 tons, and box-shaped arm with a capacity of 5 tons.
</div>

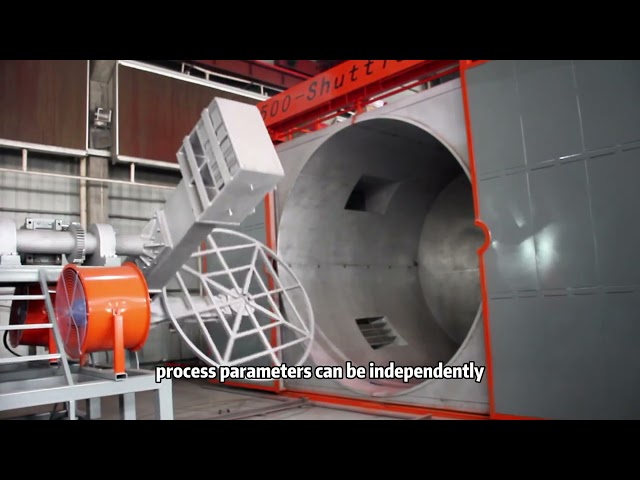

Rotational shuttle machine is an economical and suitable type of unit for plastic rotational molding.
